Vinyl-Insulated male disconnector MDD
Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass

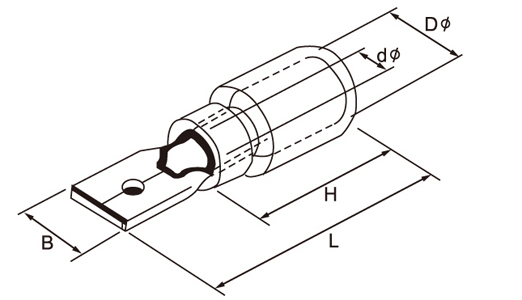

| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| MDD1.25-110(5) | 0.5×2.8 | 0.5 | 2.8 | 1.7 | 4.3 | 19 | 10.6 | Red |
| MDD1.25-110(8) | 0.8×2.8 | 0.8 | 2.8 | 1.7 | 4.3 | 19 | ||
| MDD1.25-187(5) | 0.5×4.75 | 0.5 | 4.75 | 1.7 | 4.3 | 19 | ||
| MDD1.25-187(8) | 0.8×4.75 | 0.8 | 4.75 | 1.7 | 4.3 | 19 | ||
| MDD1.25-250 | 0.8×6.35 | 0.4×2 | 6.35 | 1.7 | 4.3 | 21 | ||
Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass
| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| MDD2-187(5) | 0.5×4.75 | 0.5 | 4.75 | 2.3 | 4.3 | 20 | 10.6 | Blue |
| MDD2-187(8) | 0.8×4.75 | 0.8 | 4.75 | 2.3 | 4.3 | 20 | ||
| MDD2-250 | 0.8×6.35 | 0.4×2 | 6.35 | 2.3 | 4.3 | 21.6 | ||
Cable size:4.0~6.0mm²(A.W.G.12~10) Max current:Imax=24A Material: brass
| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| MDD5.5-250 | 0.8×6.35 | 0.4×2 | 6.35 | 3.4 | 5.7 | 25.5 | 13.5 | Yellow |
