Insulated cord end terminal
Umax: 105°C Ui=300V Material: purple copper Pipe Insulating material: Nylon

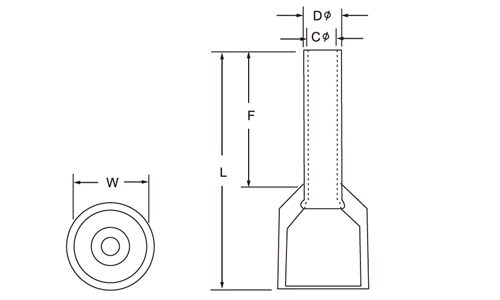

| Item No. | Dimension | Cable size | Color of Insulating (top)Germany (bottom)France | |||||
| F(mm) | L(mm) | W(mm) | D (mm) | C (mm) | A.W.G | (mm²) | ||
| E0506 | 6 | 12 | 3.4 | 1.3 | 1.0 | #22 | 0.5 | Orange |
| E0508 | 8 | 14 | White | |||||
| E0510 | 10 | 16 | ||||||
| E0512 | 12 | 18 | ||||||
| E7506 | 6 | 12.4 | 3.4 | 1.5 | 1.2 | #20 | 0.75 | White |
| E7508 | 8 | 14.4 | Bule | |||||
| E7510 | 10 | 16.4 | ||||||
| E7512 | 12 | 18.4 | ||||||
| E1006 | 6 | 12.5 | 3.6 | 1.7 | 1.4 | #18 | 1.0 | Yellow |
| E1008 | 8 | 14.5 | Red | |||||
| E1010 | 10 | 16.5 | ||||||
| E1012 | 12 | 18.5 | ||||||
| E1508 | 8 | 15.4 | 4.0 | 2.0 | 1.7 | #16 | 1.5 | Red |
| E1510 | 10 | 17.4 | Black | |||||
| E1512 | 12 | 19.4 | ||||||
| E1518 | 18 | 25.4 | ||||||
| E2508 | 8 | 15.0 | 4.6 | 2.6 | 2.3 | #14 | 2.5 | Blue |
| E2510 | 10 | 17.0 | Gray | |||||
| E2512 | 12 | 19.0 | ||||||
| E2518 | 18 | 25.0 | ||||||
| E4009 | 9 | 17.0 | 5.5 | 3.2 | 2.8 | #12 | 4.0 | Gray |
| E4012 | 12 | 21.0 | Orange | |||||
| E4018 | 18 | 27.0 | ||||||
| E6010 | 10 | 19.0 | 6.7 | 3.9 | 3.5 | #10 | 6.0 | Black |
| E6012 | 12 | 21.0 | Green | |||||
| E6018 | 18 | 26.0 | ||||||
| E10-12 | 12 | 20.8 | 8.3 | 4.9 | 4.5 | #7 | 10.0 | Milk |
| E10-18 | 18 | 26.8 | Brown | |||||
| E16-12 | 12 | 22.2 | 9.4 | 6.2 | 5.8 | #5 | 16.0 | Green |
| E16-18 | 18 | 27.6 | Milk | |||||
| E25-16 | 16 | 27.6 | 11.7 | 7.9 | 7.5 | #4 | 25.0 | Brown |
| E25-22 | 22 | 33.5 | Black | |||||
| E35-16 | 16 | 30.0 | 13.0 | 8.7 | 8.3 | #2 | 35.0 | Gray |
| E35-25 | 25 | 39.0 | ||||||
| E50-20 | 20 | 35.5 | 15.8 | 10.9 | 10.3 | #1 | 50.0 | Olive |
| E50-25 | 25 | 40.5 | ||||||
