Butt splice terminal/Parallel terminal
Material: purple copper Insulating material: PVC
| Item No. | Cable size | Dimension | Imax | Color | ||||

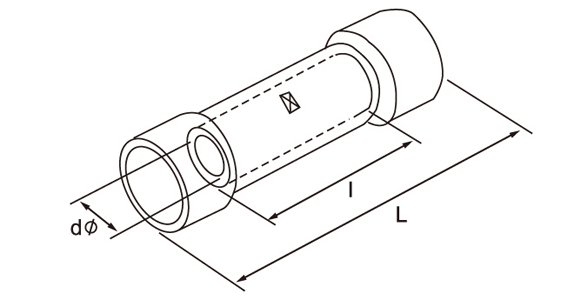

| A.W.G | mm² | I(mm) | d (mm) | L(mm) | ||||
| BV1.25 | 22-16 | 0.5-1.5 | 15 | 1.7 | 25 | 19A | Red | |
| BV2 | 16-14 | 1.5-2.5 | 15 | 2.3 | 25 | 27A | Blue | |
| BV5.5 | 12-10 | 4-6 | 15 | 3.4 | 25 | 48A | Yellow | |
| BV8 | #8 | 6-10 | 21 | 4.5 | 32 | 62A | Red | |
| BV14 | #6 | 10-16 | 26 | 5.8 | 42 | 88A | Blue | |
| BV22 | #4 | 16-25 | 29 | 7.7 | 50 | 115A | Yellow | |
| BV38 | #2 | 35-50 | 32 | 9.4 | 55 | 160A | Red | |
Vinyl-Insulated Terminals
