vinyl insulated blade terminals
Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=19A Material: purple copper Thickness:0.7mm
| Item No. | Dimension | Color | ||||||

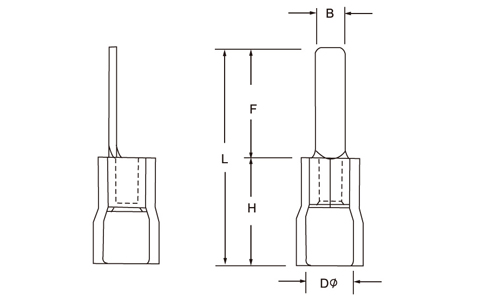

| B(mm) | L(mm) | Fmm) | H(mm) | D (mm) | ||||
| DBV1.25-10 | 2.3 | 20.6 | 10 | 10.6 | 4.3 | Red | ||
| DBV1.25-11 | 2.3 | 21.6 | 11 | |||||
| DBV1.25-14 | 2.3 | 24.6 | 14 | |||||
| DBV1.25-18 | 2.3 | 28.6 | 18 | |||||
Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=27A Material: purple copper Thickness:0.8mm
| Item No. | Dimension | Color | ||||||
| B(mm) | L(mm) | Fmm) | H(mm) | D (mm) | ||||
| DBV2-10 | 2.55 | 20.5 | 9.9 | 10.6 | 4.9 | Blue | ||
| DBV2-14 | 2.55 | 24.6 | 14 | |||||
| DBV2-18 | 2.55 | 28.6 | 18 | |||||
Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=48A Material: purple copper Thickness:1.0mm
| Item No. | Dimension | Color | ||||||
| B(mm) | L(mm) | Fmm) | H(mm) | D (mm) | ||||
| DBV5.5-10 | 2.8 | 23.3 | 9.8 | 13.5 | 5.6 | Yellow | ||
| DBV5.5-14 | 4.5 | 27.3 | 13.8 | |||||
| DBV5.5-18 | 4.5 | 31.3 | 17.8 | |||||
