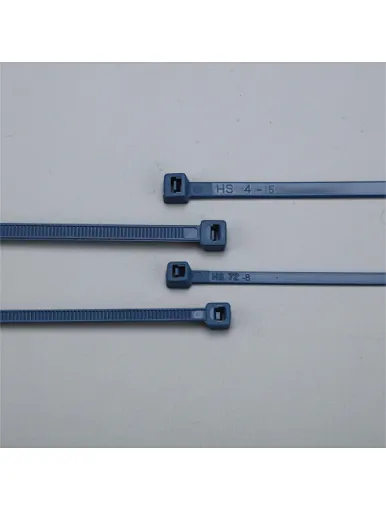

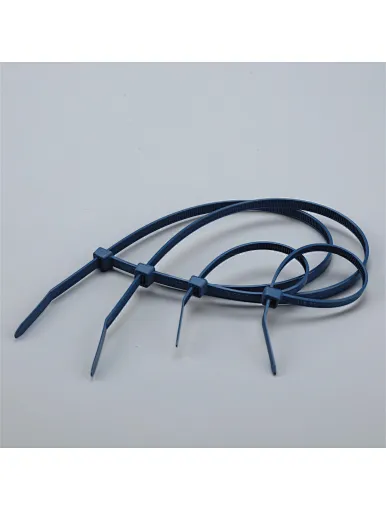

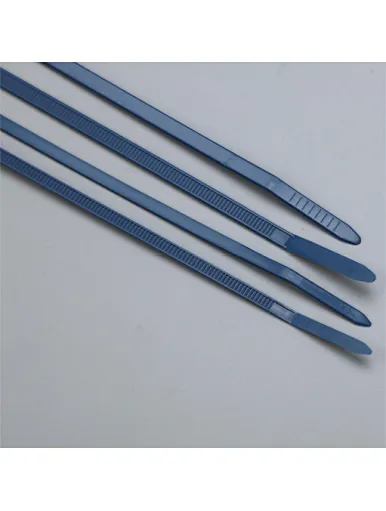

Metal detectable cable ties, PA66

Short Description:

Material:Nylon 66, 94HBMetal Detctable Cable Ties are a cable ties specifically designed for use inthe food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enable even small cut off sections of the ties to be detected by standard metal detecting equipment. Ideally suited for the installation of cabling in and around the manufacturing process.Features & Benefits: Total metal dispersion throughout the tie Avaiable in a wide range of sizes Usable as part of HACCP Process Blue color for easy visual detection Greatly reduces risk of contamination Magnetic and X-Ray detctableOperating Temperature: -40℃-85℃Color: BluePackage:100pcsITEM: HS-100A-MD,150B-MD,200B-MD,200CMD,250C-MD,300C-MD,370C-MD,400C-MD,300D-MD,370-MD


Product Detail

Product Tags

Keywords: metal detectable cable ties, metal detectable cable ties, UL plastic ties, UL plastic ties,  Colors nylon cable zip ties, Colors nylon cable zip ties, Standard cable ties, Standard cable ties, hdmi cable monster cable, hdmi cable monster cable, hdd cable connector cable, hdd cable connector cable, ul fire protection, ul fire protection, metal detectable rubber tie, metal detectable rubber tie, metal rubber tie, metal rubber tie

Material:Nylon 66, 94HB
Installation Temperature: -40℃-85℃
Color: Blue
Package:100pcs or Special request Packing available
Type: mountable head ties, Nylon zip ties, Nylon cable ties, Standard PA6,6 cable ties, UL plastic ties, Wahsure cable zip ties, wire ties, UL nylon cable ties, nylon cable ties colors, Colors nylon cable zip ties

Metal Detctable Cable Ties are a cable ties specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enable even small cut off sections of the ties to be detected by standard metal detecting equipment. Ideally suited for the installation of cabling in and around the manufacturing process.

Features & Benefits:
*Total metal dispersion throughout the tie
*Avaiable in a wide range of sizes
*Usable as part of HACCP Process
*Blue color for easy visual detection
*Greatly reduces risk of contamination
*Magnetic and X-Ray detctable

ITEM NO. : HS-300D-MD


Operating Temp.-40~85
-40~185
Lengthmm300
Inch11.8
Widthmm7.6
Inch0.3
Max. Bundle Dia.mm82
Inch3.2
Min. Loop Tensile StrengthN550
KG56.1
LBS120



Other size

Specification Data:
ITEM NOLENGTH (MM)WIDTH (MM)Max. Bundle DiaTensile Strength
INCHMM(mm)LBSN
HS-100A-MD41002.5228018
HS-150B-MD61503.63518040
HS-200B-MD82003.65018040
HS-200C-MD82004.85022050
HS-250C-MD102504.86522050
HS-300C-MD11.83004.88222050
HS-370C-MD14.53704.810222050
HS-400C-MD154004.810522050
HS-300D-MD11.83007.682550120
HS-370D-MD14.53707.6102550120
