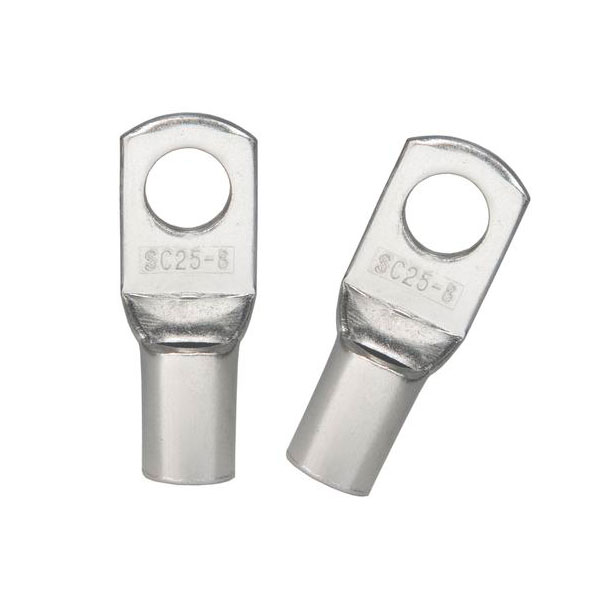

Copper Tube Lug(SC)

Short Description:

COPPER TUBE LUG(SC) ITEM NO. D2φ(mm) Dimensions(mm) Conductor section(mm²) dφ DΦ L1 L SC1.5-5 5.3 1.9 3.35 6.5

Product Detail

Product Tags

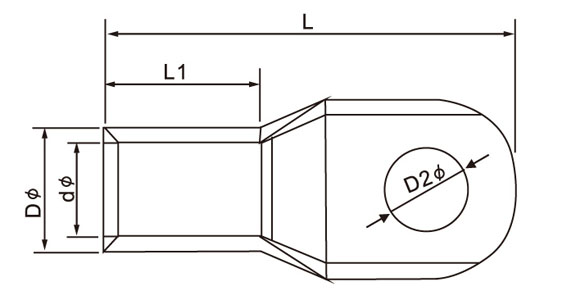

COPPER TUBE LUG(SC)

ITEM NO.	D2φ(mm)	Dimensions(mm)				Conductor section(mm²)
ITEM NO.	D2φ(mm)	dφ	DΦ	L1	L	Conductor section(mm²)
SC1.5-5	5.3	1.9	3.35	6.5	18.0	1.5
SC2.5-4	4.3	2.6	4.0	7.0	18.0	2.5
SC2.5-5	5.3	2.6	4.0	7.0	20.0	2.5
SC4-5	5.3	3.2	4.8	7.5	20.5	4
SC4-6	6.4	3.2	4.8	7.5	22.0	4
SC6-5	5.3	4.1	5.5	9.0	23.0	6
SC6-6	6.4	4.1	5.5	9.0	23.0	6
SC10-6	6.4	5.1	6.5	9.5	25.0	10
SC10-8	8.4	5.1	6.5	9.5	27.0	10
SC16-6	6.4	6.4	8.0	12.2	30.7	16
SC16-8	8.4	6.4	8.0	12.2	30.7	16
SC25-6	6.4	7.4	9.0	13.3	34.0	25
SC25-8	8.4	7.4	9.0	13.3	34.0	25
SC35-8	8.4	8.5	10.5	14.5	38.0	35
SC35-10	10.5	8.5	10.5	14.5	38.0	35
SC50-8	8.4	9.6	12.0	16.5	42.5	50
SC50-10	10.5	9.6	12.0	16.5	42.5	50
SC70-10	10.5	11.9	14.5	19.0	50.0	70
SC70-12	13	11.9	14.5	19.0	50.0	70
SC95-10	10.5	13.2	16.0	20.3	56.5	95
SC95-12	13	13.2	16.0	20.3	56.5	95
SC120-12	13	15.6	19.0	24.5	64.0	120
SC120-16	17	15.6	19.0	24.5	64.0	120
SC150-12	13	17.4	21.0	29.0	69.0	150
SC150-16	17	17.4	21.0	29.0	69.0	150
SC185-12	13	19	23.0	32.0	72.0	185
SC185-16	17	19	23.0	32.0	72.0	185
SC240-16	17	21.8	26.0	38.0	92.0	240
SC240-20	21	21.8	26.0	38.0	92.0	240
SC300-16	17	24.8	30.0	43.0	101.0	300
SC300-20	21	24.8	30.0	43.0	101.0	300
SC400-16	17	28	34.0	46.0	110.0	400
SC400-20	21	28	34.0	46.0	110.0	400
SC500-16	17	30	38.0	47.0	119.0	500
SC500-20	21	30	38.0	47.0	119.0	500
SC630-20	21	35	45.0	56.0	135.0	630
SC800-22		39	50.0	60.0	170.0	800
SC1000-22		44	56.0	87.0	200.0	1000

Copper Tube Lug(SC) Cable lug
